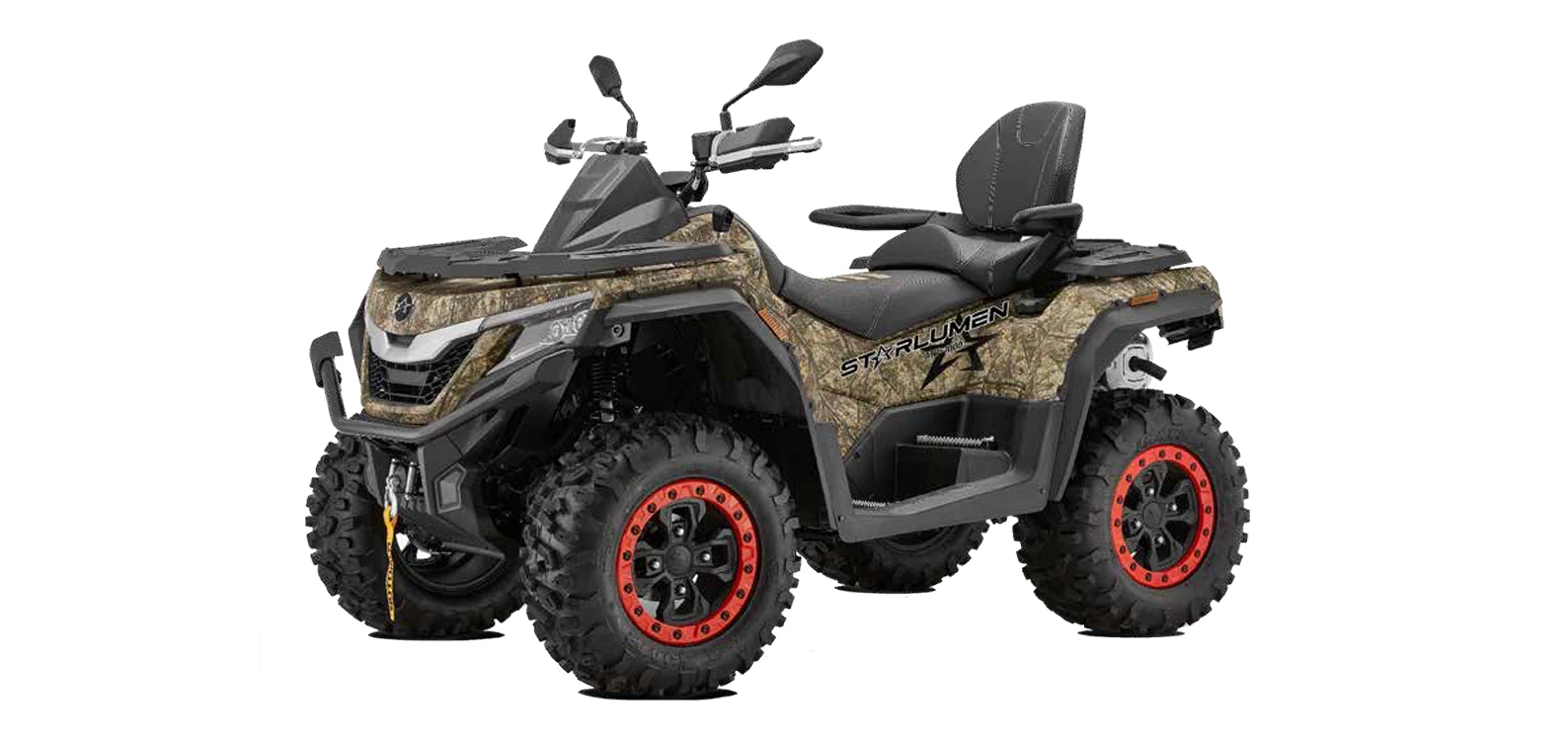

ATV/UTV
ATV-1000
976
Displacement
CC
445
Curb weight
kg
Intelligent four-wheel drive + differential lock + adjustable airbag shock absorbers, the same model used by the champion of the Taklimakan Rally, easily conquering all terrains.
Feature 1
Powerful Performance:

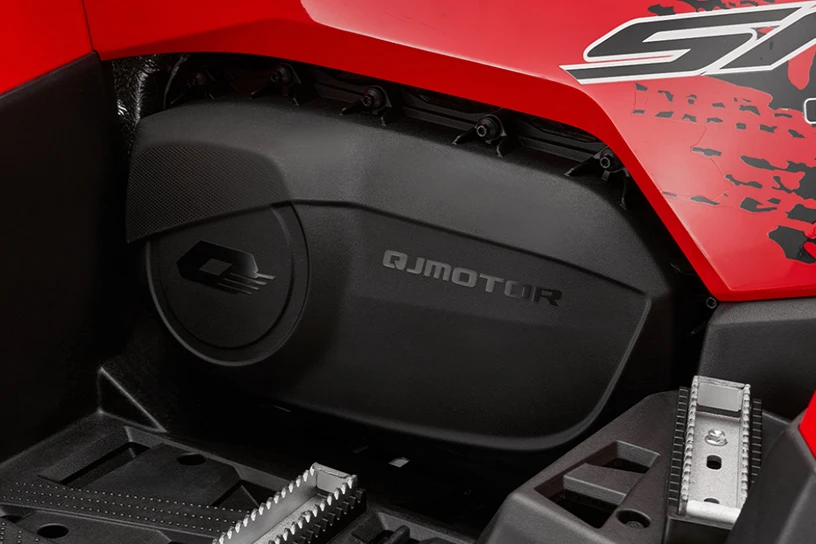

V-twin engine, CVT automatic transmission, dual high/low driving modes, front and rear adjustable differential locks
Peak Power: 68KW/7300rpm
Peak Torque: 95N*M/5500rpm
Feature 2

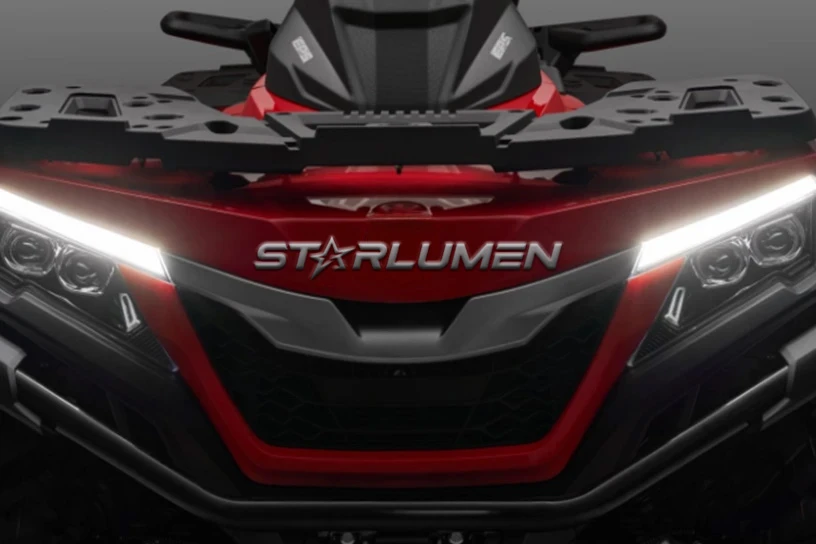

Full LED Headlights, Customized Bumpers
Feature 3

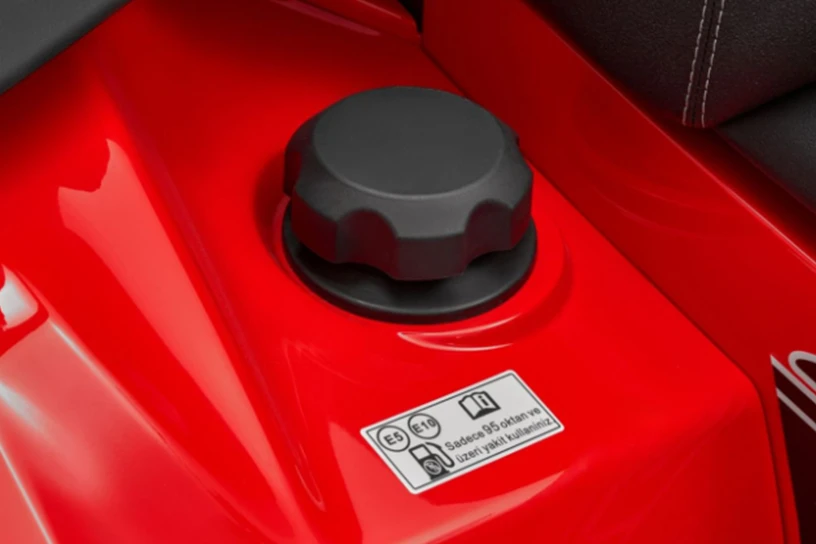

25L Large Fuel Tank | Extended Range
Feature 4

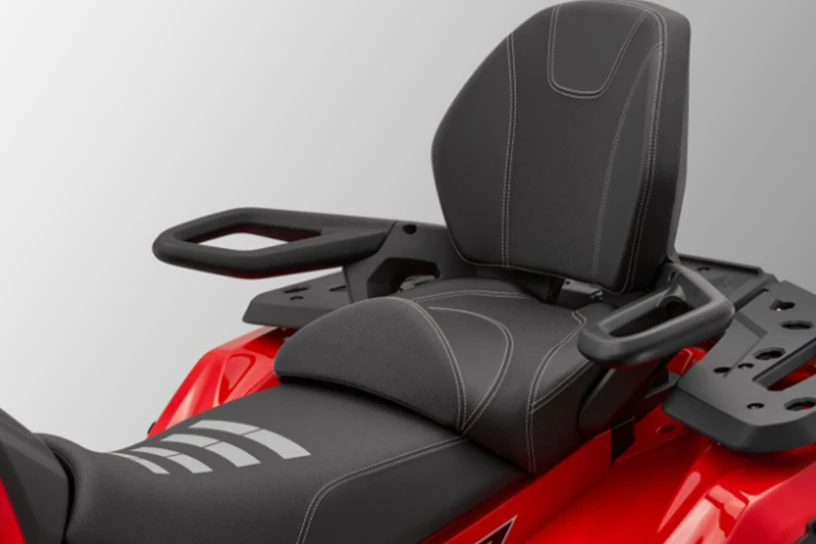

Double Seat | Comfortable Backrest
Feature 5
Beadlock Tires | 26-28 Inch
Feature 6

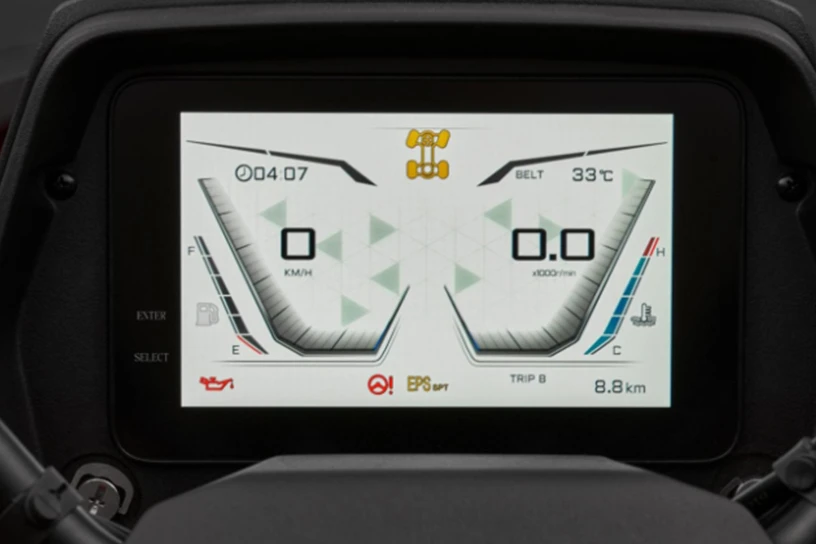

7-inch TFT Instrument Panel | Smart Connectivity
Feature 7

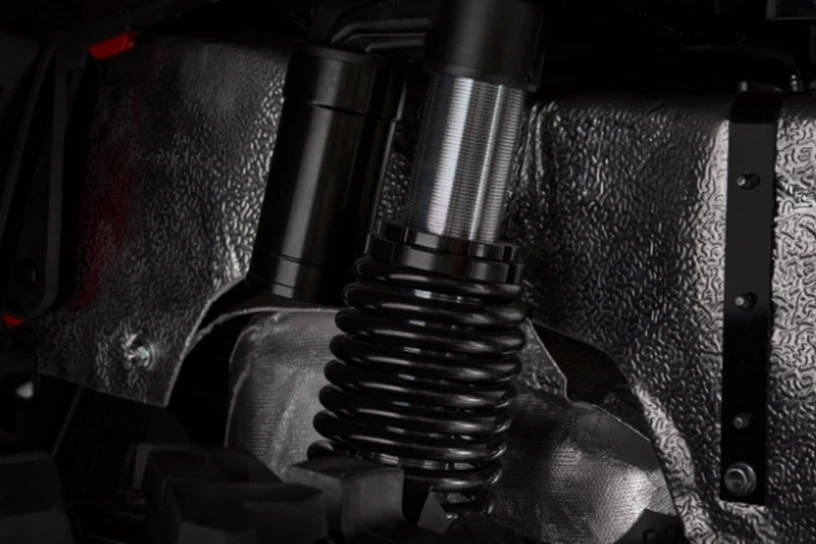

Multi-level Adjustable Airbag Suspension
Feature 8

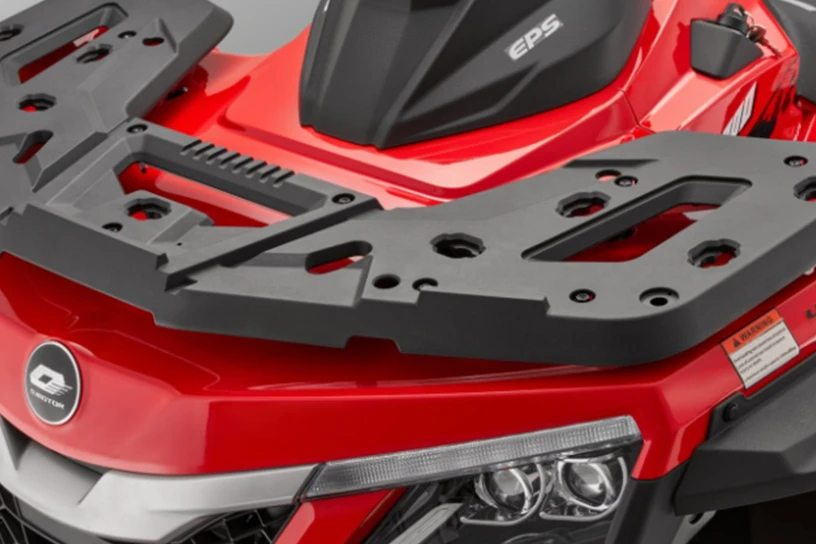

Dual-Material Shelving | 90Kg Load Capacity
Feature 9

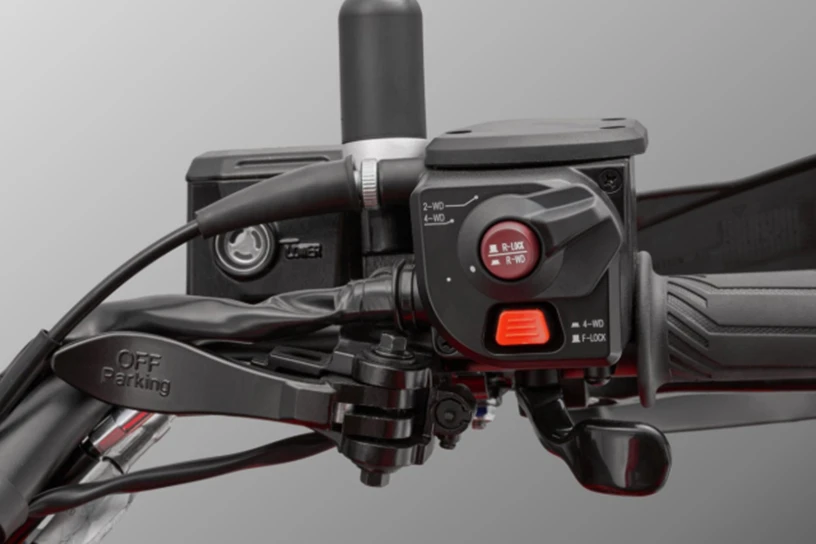

2/4WD Switching + Differential Lock
Feature 10
High-Strength Towing Capacity | 2500/3500Ib Winch
Specifications
| Cylinder & Valve | V-type twin-cylinder, water-cooled |
| Power/RPM | 68kW / 7300rpm |
| Torque/RPM | 95N·m / 5500rpm |
| L×W×H (mm) | 2296 × 1275 × 1472 mm |
| Wheelbase (mm) | 1480 mm |
| Seat Height (mm) | 875 mm |
| Front Tire Specification | 27×9-R14 |
| Rear Tire Specification | 27×11-R14 |
| Front Brake | Disc brake |
| Rear Brake | Disc brake |
| Front Suspension | Double wishbone independent suspension with air shock absorber |
| Rear Suspension | Two-stage adjustable nitrogen shock absorber |
| Transmission Mode | Shaft drive |
| Clutch Type | Dry multi-plate clutch |
| Fuel Tank Capacity (L) | 25 |
| Curb Weight (kg) | 445 |
| Displacement (cc) | 976 |
| Instrument | 7-inch TFT liquid crystal instrument |
| Other Configurations | Winch, trailer hook |
FAQ
Does the vehicle have certification?
Golf carts are off-road vehicles, so the entire vehicle does not require certification. In Europe and America, only components need eMark certification, and the components must meet the certification requirements.
Does the vehicle have CarPlay connectivity?
Yes, it can connect to your phone via Bluetooth.
Are the battery capacities interchangeable?
The 105Ah/155Ah/205Ah capacities are interchangeable.
After-sales service policy
The battery, motor, and charger are covered by a one-year warranty. Other components are not covered by the warranty. Repairs will be primarily conducted via video communication and on-site guidance, depending on the region.
