976
Displacement
CC
445
Curb weight
kg
1500cc powerful engine, all-terrain capability, high load capacity and stable handling, adaptable to multiple scenarios.
Feature 1
Powerful Performance:
Turbocharged four-cylinder engine, high-performance air filter
Peak Power: 110KW/5400rpm
Peak Torque: 215N*M/5400rpm
Feature 2

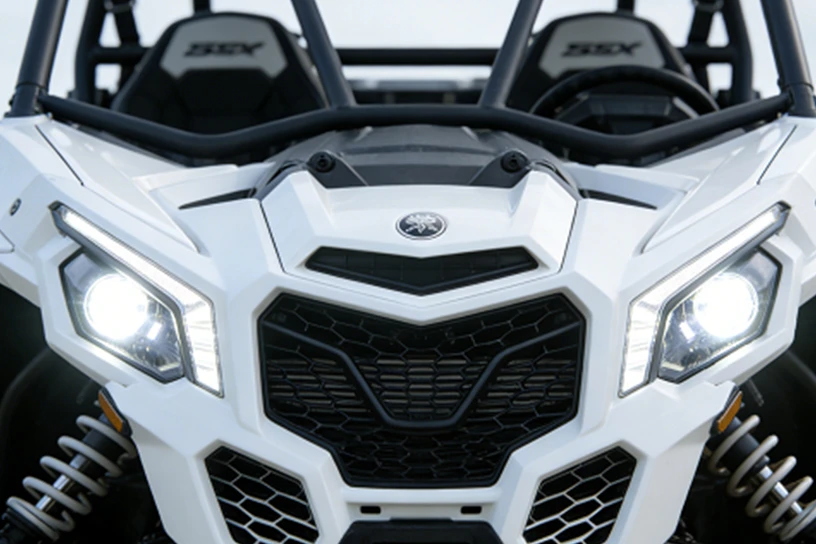

All models feature LED headlights, custom bumpers
Feature 3

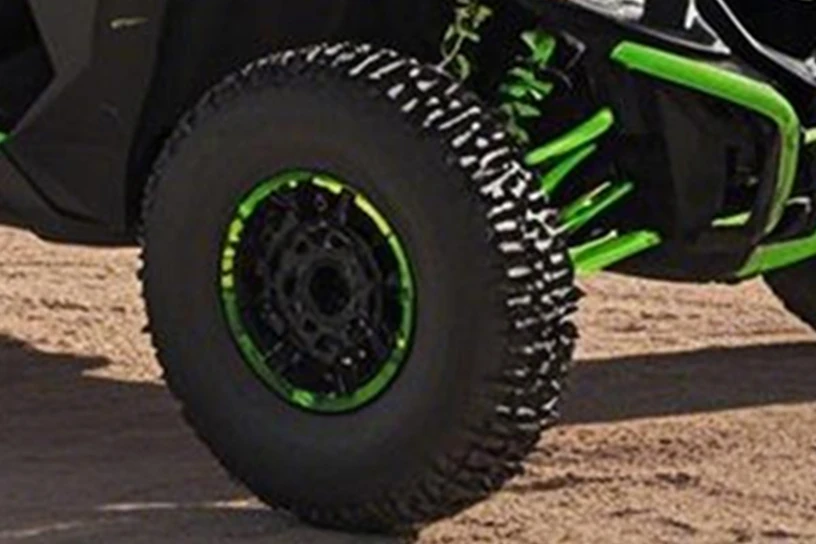

Beadlock tires | 32*10R15 8PR
Feature 4

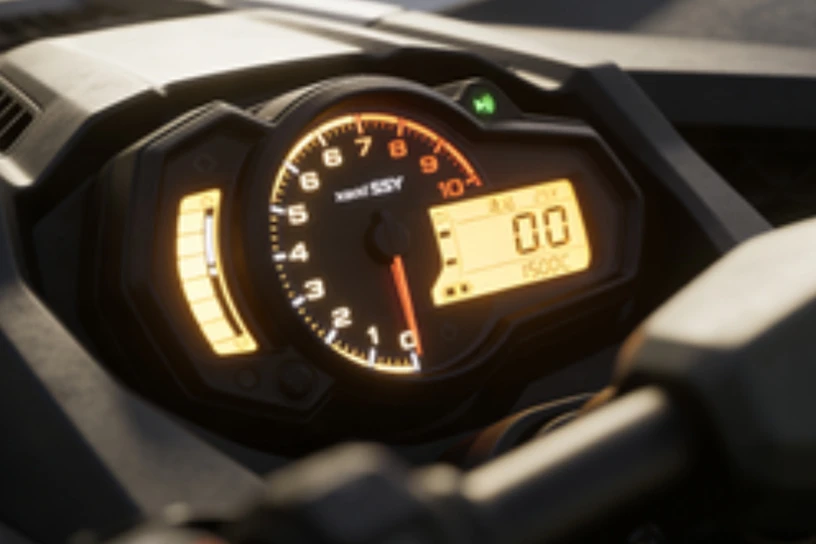

7-inch TFT instrument cluster | Smart connectivity
Feature 5

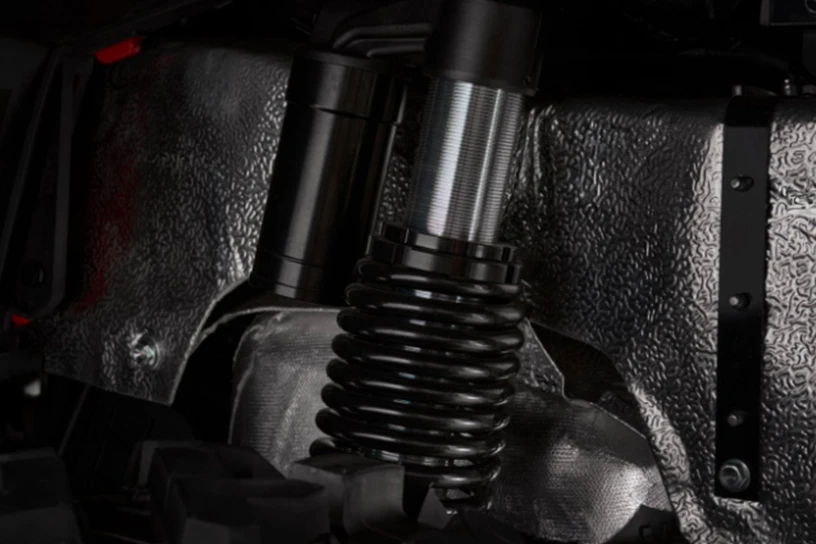

Multi-level adjustable airbag suspension
Gallery
Specification
| ENGINE | |
| Type | 150HP,Turbocharged four-cylinder engine,liquid-cooled,and high- performance filter |
| Displacement | 1500cc Turbo |
| Maximum Torque(Nm) | 215 |
| Max Power(KW) | 110KW/5400rpm |
| Max Speed(km/h) | 120 |
| Fuel Delivery | EFI |
| SUSPENSIONS | |
| Shocks |
Multi-stage High/Low-speed Compression Adjustment Structure(H/L COMP); Progressive Rebound Flow Valve Adjustment System(TSF); 3D Multi-channel Thermal Control System(TCS); Hydraulic Bottoming Buffer System (HBS); Rebound Hydraulic Reverse-damping System(HRS); Twin Piston Control Technology(TPT); Monotube body using 7075-T6 aerospace aluminum; Cross-hatch honed inner surface (Ra ≤0.05μm) creating multi-vector oil film adhesion; Performance Components: Dakar-grade Eibach springs (German DIN 2095 certified) with 12,000-hour salt spray resistance; Fuchs SynForce 3000 shock fluid (-69℃~169℃ operational range, VI>380); NOK Triple-Lip Seals (JIS W 5007 compliant,<0.15N breakout friction); DU®self- lubricating bushings (PV limit 3.5 MPa·m/s); Hard chrome plating (0.05mm, HV 900); Micro-polishing (Ra 0.01μm); DLC coating (3μm, coefficient of friction 0.08) |
| BODY AND CHASSISSYSTEM | |
| Frame Structure | 4130 Chromium-Molybdenum Alloy Cage Structure |
| Transmission | Continuously Variable Transmission(Belt-type CVT) |
| Drive Train | Two-Wheel Drive /Four-Wheel Drive Switching with Differential Lock |
| Suspension | Monocoque Stamped Double Wishbone Independent Suspension |
| BRAKES | Driled and Ventilated Hydraulic Disc BrakeHydraulic Twin-Piston Caliper Dual 260mm Ventilated Disc Brakes |
| Front /Rear Wheels | 15*5J Aluminum Alloy Wheel(with Beadlock)15*5J |
| Front /Rear Tires | 32*10R158PR |
| Safety Belt | Four-point Seatbelt with Shoulder Pads |
| Driver Shaft | High-Strength Racing Half-Shaft |
FAQ
What is the frame structure and how strong is it?
It adopts a 4130 chromium-molybdenum alloy roll cage structure, which features high strength, light weight and strong impact resistance, meeting professional off-road and competition safety standards.
How is the brake system configured?
Both front and rear are equipped with 260mm drilled and ventilated hydraulic disc brakes + dual-piston calipers. They offer fast heat dissipation, strong braking force and linear response, ensuring safer braking during high-speed and high-intensity off-road riding.
What are the highlights of the safety configuration?
It is equipped with a four-point seatbelt with shoulder pads, high-strength racing half-shafts and a professional roll cage, providing all-round safety for high-intensity off-road and competition scenarios.
