Electric Urban Motorcycles
SR03
Tuned for all scenarios including highways, mountain roads, and muddy terrain, this system delivers ultimate handling and redefines the cycling experience.
Feature 1:

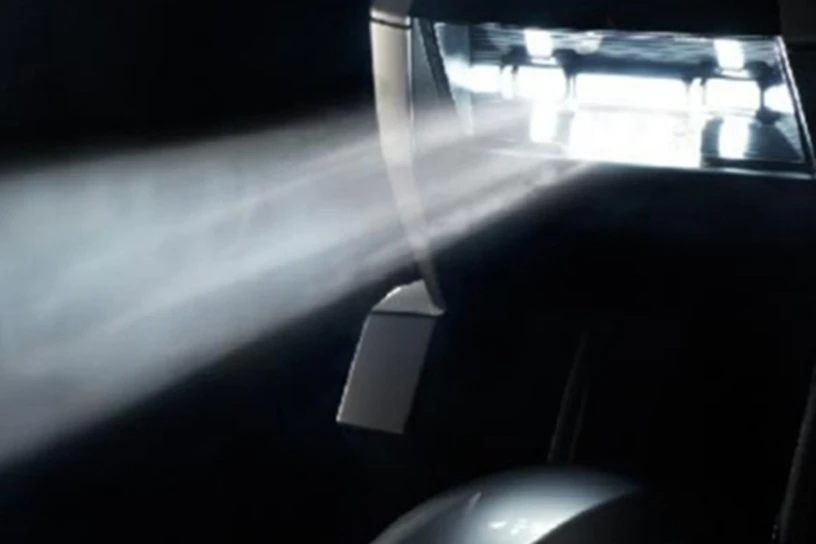

Floating Headlight Design - Floating light and shadow illuminate your ride, showcasing your prowess.
Feature 2

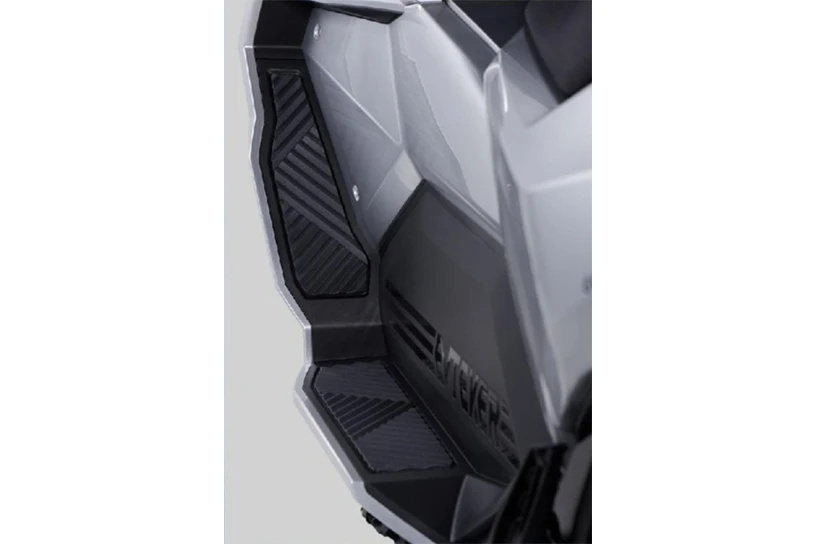

Ergonomic Saddle and Pedals - Ergonomically designed for comfortable riding, ensuring ease on every journey.
Feature 3

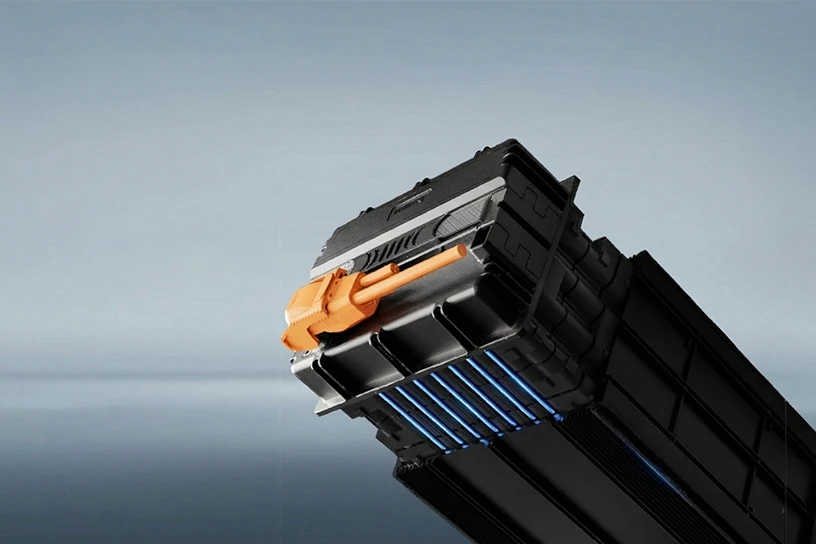

HIGH-RateTernary LITHIUM BATTERY
72v 84Ah
Battery specifications
210km
Maximum range
180km
Operating condition range
Feature 4

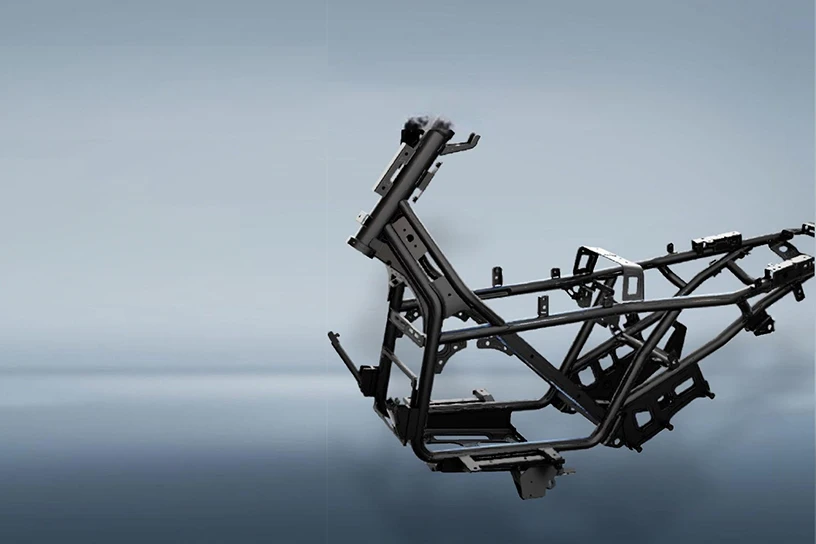

Double-beam carbon steel large-displacement motorcycle-grade frame
Feature 5

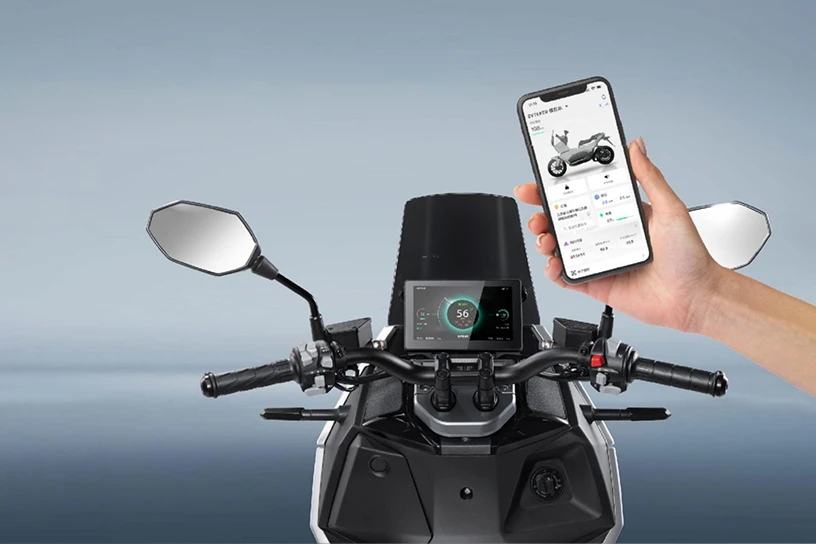

7-inch TFT LCD instrument panel
Specifications
|
Parameter Configuration |
|||
|
Model |
SR04L |
SR04M |
SR04S |
|
Max Speed |
95 km/h |
115 km/h |
130km/h |
|
Max Range |
140 km(Two batteries) |
120 km(Two batteries) |
250km |
|
Max Climb Capacity |
15° |
18° |
18° |
|
Max Vehicle Weight |
135kg |
150kg |
210kg |
|
Waterproof level |
IP65 |
IP65 |
IP65 |
|
Battery Type |
Removeable NCM Lithium |
Semi Solid |
|
|
Battery Cell |
18650 |
18650 |
Soft Core |
|
Battery Capacity |
72V38Ah |
72V38Ah |
96V112Ah |
|
Battery Weight |
17.3 kg |
17.3 kg |
60kg |
|
Second Battery |
√ |
√ |
× |
|
Motor Type |
Hub Motor |
Centralized Motor |
Centralized Motor |
|
Motor Rated Power |
3 kw |
9.5 kw |
11kw |
|
Motor Peak Power |
6.3 kw |
11 kw |
20kw |
|
Max Torque |
140 N.m |
260 N.m |
460 N.m |
|
Controller Type |
FOC |
FOC |
FOC |
|
Charger Input Voltage |
220V/110V |
220V/110V |
220V/110V |
|
Charger Power |
72V10A(Optional fast charger 15A) |
108V60Ah |
|
|
Charging Time |
3.8h(Optional 2.5h) |
3.8h(Optional 2.5h) |
2.5h |
|
Unlocking Type |
Remote control+NFC+Key |
Remote control+NFC+Key |
Remote control+NFC+Key |
|
Brake type |
CBS |
ABS |
ABS |
|
Display type |
TFT |
TFT |
TFT |
|
USB |
√ |
√ |
√ |
|
Vehice Size |
2100*800*1100 mm |
2105*815*1120 mm |
2105*815*1120 mm |
|
Ground Clearance |
164 mm |
164 mm |
164 mm |
|
Tyre Size |
Fr.110/70-17 / Re. 120/70-17 |
Fr.110/70-17 / Re. 140/70-17 |
Fr.110/70-17 / Re. 140/70-17 |
|
Tire pressure monitoring |
× |
× |
√ |
|
Communication Protocol |
CANbus |
CANbus |
CANbus |
|
40HQ Loads |
48Unit |
48Unit |
48Unit |
|
Package Type |
Iron+Carton |
Iron+Carton |
Iron+Carton |
FAQ
Does the vehicle have certification?
Golf carts are off-road vehicles, so the entire vehicle does not require certification. In Europe and America, only components need eMark certification, and the components must meet the certification requirements.
Does the vehicle have CarPlay connectivity?
Yes, it can connect to your phone via Bluetooth.
Are the battery capacities interchangeable?
The 105Ah/155Ah/205Ah capacities are interchangeable.
After-sales service policy
The battery, motor, and charger are covered by a one-year warranty. Other components are not covered by the warranty. Repairs will be primarily conducted via video communication and on-site guidance, depending on the region.
