Electric Urban Motorcycles
SR04
130
Max Speed
Km/h
250
Max Range
km
Feature 1

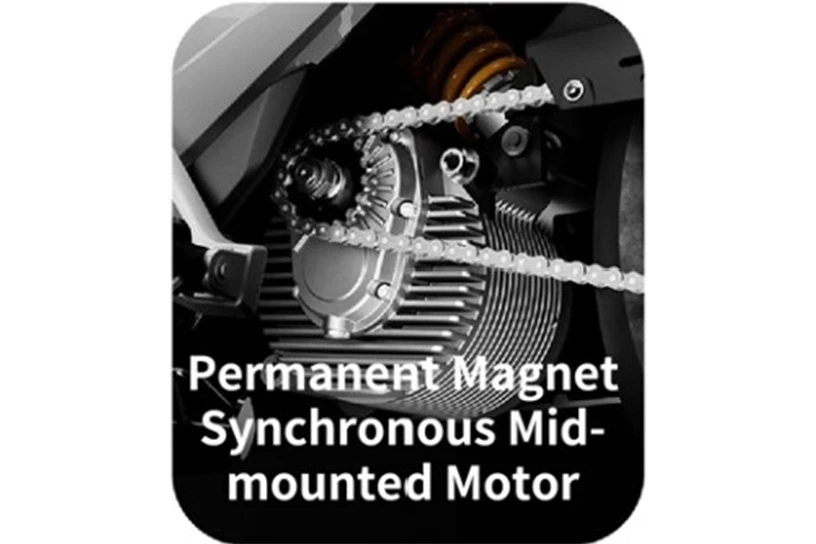

A powerful mid-mounted motor delivers exhilarating power! 20kW peak power + 460N・m wheel torque provide maximum acceleration, reaching speeds up to 130km/h, unleashing your driving passion!
Feature 2

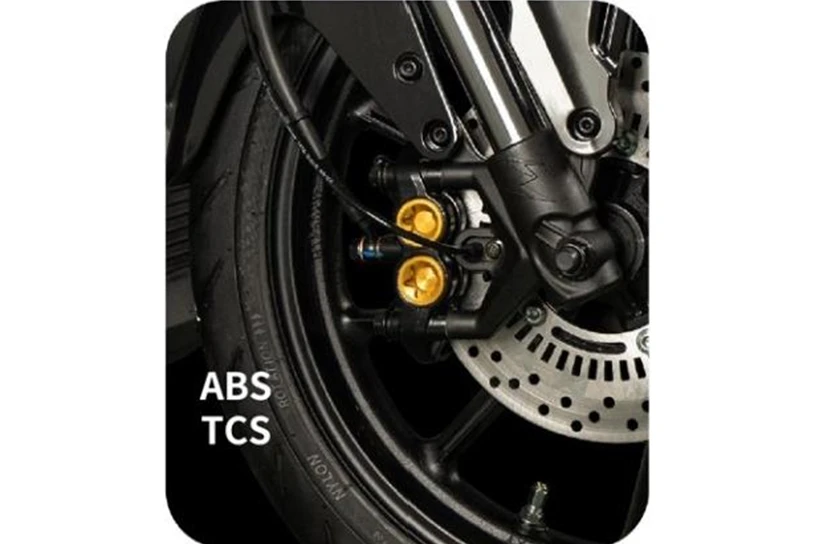

ABS+TCS dual safety features ensure rock-solid stability!
Feature 3

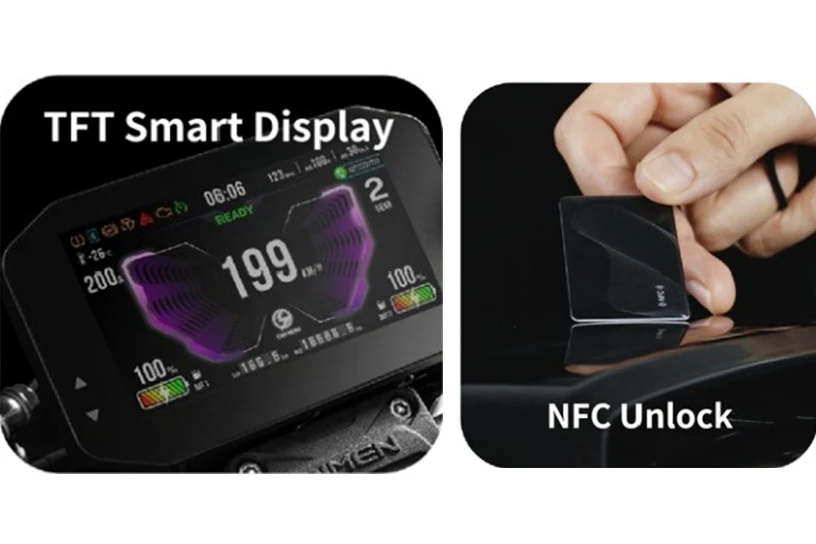

A 7-inch high-definition TFT instrument panel + NFC seamless start-stop system allows for one-touch intelligent start!
Feature 4
A large-capacity 72V38Ah dual lithium battery and a 108V60Ah semi-solid-state lithium battery are portable, rechargeable, and swappable, offering a maximum range of 250km, making commuting and long-distance travel effortless and eliminating range anxiety!
Feature 5

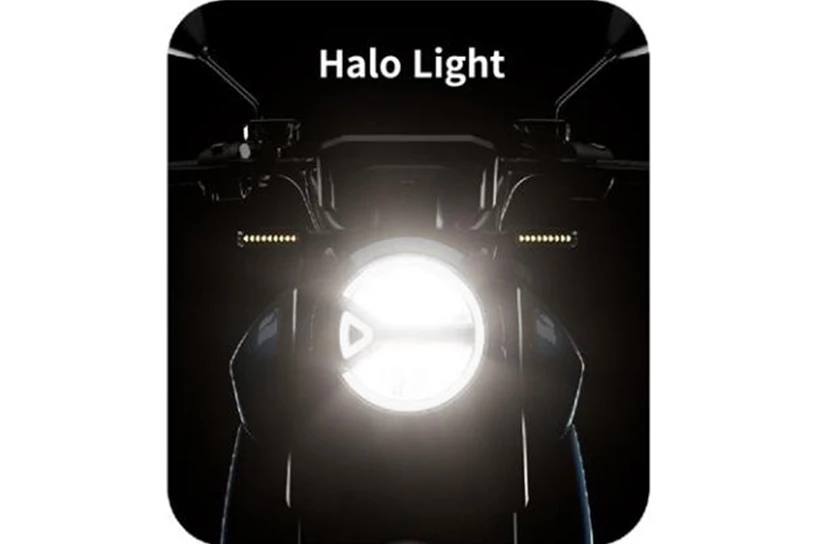

A powerful 50,000 candela headlight illuminates the night, ensuring worry-free nighttime driving.
Specifications
|
Parameter Configuration |
|||
|
Model |
SR04L |
SR04M |
SR04S |
|
Max Speed |
95 km/h |
115 km/h |
130km/h |
|
Max Range |
140 km(Two batteries) |
120 km(Two batteries) |
250km |
|
Max Climb Capacity |
15° |
18° |
18° |
|
Max Vehicle Weight |
135kg |
150kg |
210kg |
|
Waterproof level |
IP65 |
IP65 |
IP65 |
|
Battery Type |
Removeable NCM Lithium |
Semi Solid |
|
|
Battery Cell |
18650 |
18650 |
Soft Core |
|
Battery Capacity |
72V38Ah |
72V38Ah |
96V112Ah |
|
Battery Weight |
17.3 kg |
17.3 kg |
60kg |
|
Second Battery |
√ |
√ |
× |
|
Motor Type |
Hub Motor |
Centralized Motor |
Centralized Motor |
|
Motor Rated Power |
3 kw |
9.5 kw |
11kw |
|
Motor Peak Power |
6.3 kw |
11 kw |
20kw |
|
Max Torque |
140 N.m |
260 N.m |
460 N.m |
|
Controller Type |
FOC |
FOC |
FOC |
|
Charger Input Voltage |
220V/110V |
220V/110V |
220V/110V |
|
Charger Power |
72V10A(Optional fast charger 15A) |
108V60Ah |
|
|
Charging Time |
3.8h(Optional 2.5h) |
3.8h(Optional 2.5h) |
2.5h |
|
Unlocking Type |
Remote control+NFC+Key |
Remote control+NFC+Key |
Remote control+NFC+Key |
|
Brake type |
CBS |
ABS |
ABS |
|
Display type |
TFT |
TFT |
TFT |
|
USB |
√ |
√ |
√ |
|
Vehice Size |
2100*800*1100 mm |
2105*815*1120 mm |
2105*815*1120 mm |
|
Ground Clearance |
164 mm |
164 mm |
164 mm |
|
Tyre Size |
Fr.110/70-17 / Re. 120/70-17 |
Fr.110/70-17 / Re. 140/70-17 |
Fr.110/70-17 / Re. 140/70-17 |
|
Tire pressure monitoring |
× |
× |
√ |
|
Communication Protocol |
CANbus |
CANbus |
CANbus |
|
40HQ Loads |
48Unit |
48Unit |
48Unit |
|
Package Type |
Iron+Carton |
Iron+Carton |
Iron+Carton |
FAQ
Does the vehicle have certification?
Golf carts are off-road vehicles, so the entire vehicle does not require certification. In Europe and America, only components need eMark certification, and the components must meet the certification requirements.
Does the vehicle have CarPlay connectivity?
Yes, it can connect to your phone via Bluetooth.
Are the battery capacities interchangeable?
The 105Ah/155Ah/205Ah capacities are interchangeable.
After-sales service policy
The battery, motor, and charger are covered by a one-year warranty. Other components are not covered by the warranty. Repairs will be primarily conducted via video communication and on-site guidance, depending on the region.
